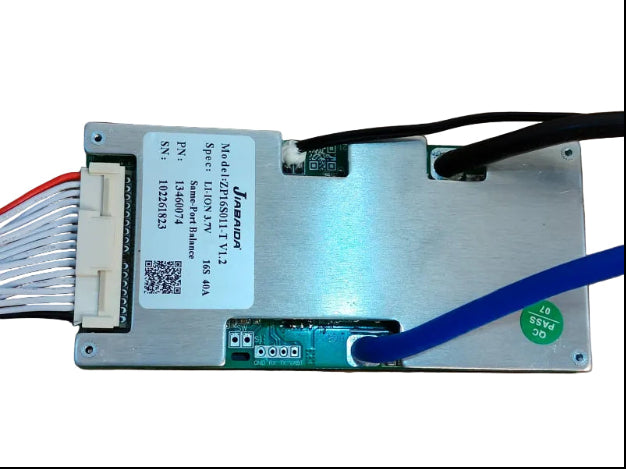

JIABAIDA BMS 16s 40A High Voltage Active Balancing BMS
A "16S/40AH JIABAIDA BMS" refers to a 16-series (16s) Smart Battery Management System (BMS), Made by JK, Designed for large Lithium Battery Packs (LiFePO₄, Li-ion, LTO) used in solar storage, EVs, etc.,featuring Active Balancing (up to 2A), multiple protections (over-charge/discharge/current temp), and communication ports (Bluetooth, CAN, RS485) for real-time monitoring and system integration, crucial for balancing and protecting high-voltage battery banks.
Key Features & Functions:
- Cell Configuration: Handles 16 cells in series (16S) for higher voltage systems (around 48V).
- Active Balancing: Actively moves charge between cells (up to 2A), improving capacity and life, unlike passive balancing.
- Protection: Offers robust protection against over-voltage, under-voltage, over-current, short circuits, and high temperatures for safety.
- Connectivity: Includes Bluetooth for app monitoring, plus RS485, CAN, and RS232 for integration with inverters and other devices.
- Monitoring: Real-time monitoring of voltage, current, temperature, and state of charge (SOC)..
- Applications: Ideal for home energy storage systems (ESS), DIY battery banks, and electric vehicle conversions.
Common Models:
- JIABAIDA-PB1A16S10P: 16S, 100A continuous current, often used in general ESS.
- JIABAIDA-PB2A16S20P: 16S, 200A continuous current, designed for higher power systems with up to 15 parellel strings.
Important Considerations:
- Wiring: Correctly connecting sensor wires in sequence (e.g., +3.2V per cell) is critical and often a point of error.
- Configuration: Requires app or PC software (like the Jikong BMS app) for setup and customization of parameters.
