ACTIVE BALANCER MACHINE

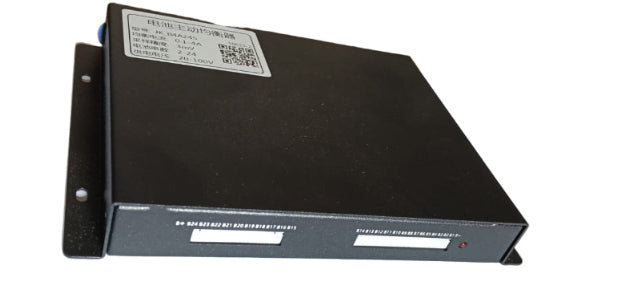

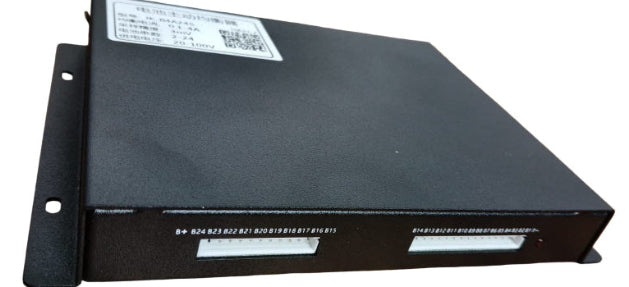

JK 10A smart active balancer equalizer for lithium polymer battery packReal-time, active, energy transfer type equilibrium, after reaching the equilibrium, the voltage difference between single cells ≤3mV, supports 2-24 series lithium battery pack
supports 2-16 series lithium battery pack
Single voltage acquisition range :1V-5V, accuracy ±3mV
Support li-ion,lead acid, ultra-capacitors and other battery types
The equalization current is set independently within the range of 0.1A-10A and does not depend on the voltage difference of the single battery
It supports equilibrium cascade, which is applicable to more than 24 battery packs. Theoretically, it can support BT
communication in infinite cascade. It is equipped with mobile phone APP to check the status of battery cells in real time.
Balanced wire resistance detection, abnormal contact is found in advance
Power supply range :40V-100V
Super self protection function, it will not burn down the balancer even if equalizer wire arbitrarily connected
supports 2-16 series lithium battery pack
Single voltage acquisition range :1V-5V, accuracy ±3mV
Support li-ion,lead acid, ultra-capacitors and other battery types
The equalization current is set independently within the range of 0.1A-10A and does not depend on the voltage difference of the single battery
It supports equilibrium cascade, which is applicable to more than 24 battery packs. Theoretically, it can support BT
communication in infinite cascade. It is equipped with mobile phone APP to check the status of battery cells in real time.
Balanced wire resistance detection, abnormal contact is found in advance
Power supply range :40V-100V
Super self protection function, it will not burn down the balancer even if equalizer wire arbitrarily connected
| Model | JK-B10A24S |
| Size | 232.3*191*42mm |
| Active balance current | 0.8-10A adjustable |
| Single cell voltage | 1V~5V |
| Single cell voltage difference after balance | less than 5mV |
| Voltage scale | 40V~100V |
| Working temperature | -30 degree to 90 degree |
| Application series | 2S~24S |
