DALY LiFePo4 19S 60V 40A

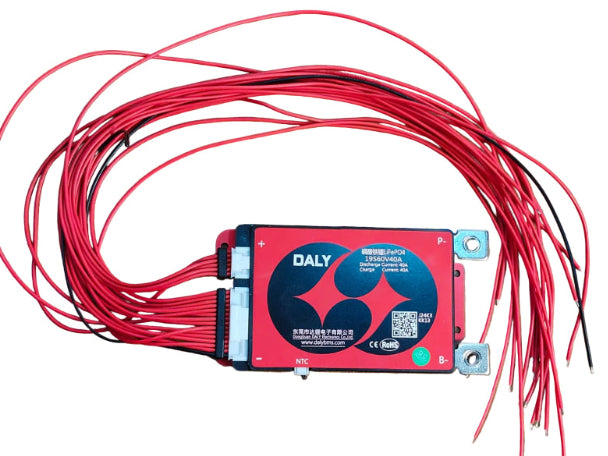

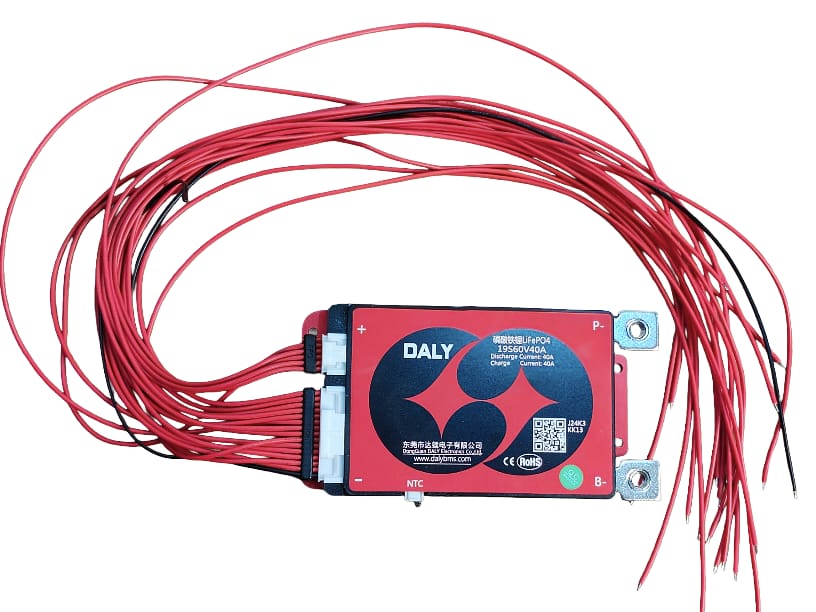

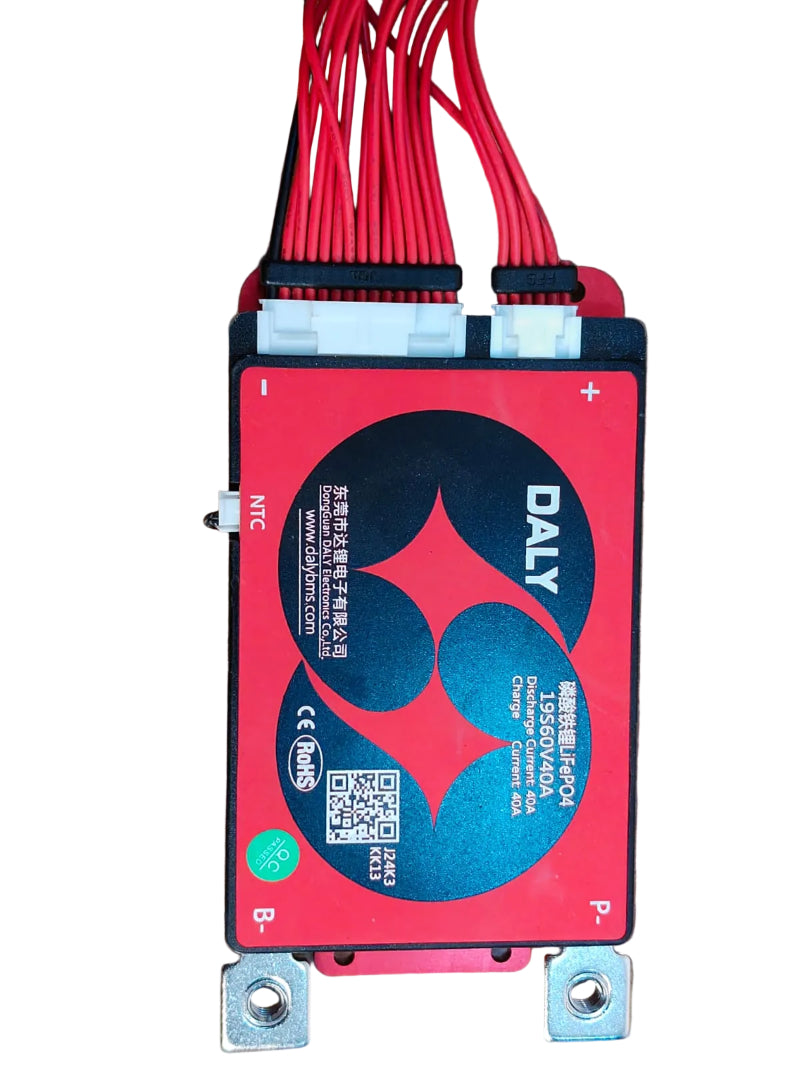

DALY LiFePo4 19S 60V 40A Waterproof Battery Management System - BMS Protection Board
Daly Lifepo4 19S 60V 40A BMS is an 19 Cell in Series 60V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.
Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.
Daly Lifepo4 19S 60V 40A BMS Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent battery balancing (passive).
- Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
Daly Lifepo4 19S 60V 40A BMS Specification :
| Balance Current(mA) |
30±5 |
| Balance Detect Voltage(V) |
3.5 |
| Cable Size (AWG) |
10 |
| Charge Current(A) | 20 |
| Charge Voltage(V) |
69.35 |
| Height (mm) | 11.6 |
| Length (mm) |
126.5 |
| Model |
19S 60V 40A |
| Over Discharge Detect(V) |
2.2±0.05 |
| Over Discharge Release(V) |
Off load |
| Overcharge Detect Voltage(V) |
3.75±0.05 |
| Overcharge Release Voltage(V) |
3.55±0.05 |
| Width (mm) |
65 |
| Working Current(uA) |
100 |
| Working Temperature Range (°C) |
-20 to 70 |
Explore wide range of DALY Smart BMS >
Package Includes:
1 x Daly 19S 60V 40A Battery Management System.
